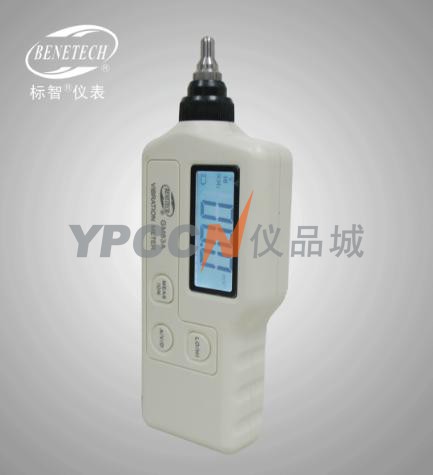

     Vibration Meter GM63A
    *Measuring range：
    Acceleration：0.1~199.9m/s
    Velocity：0.1~1999.9m/s
    Displacement：0.001~1.999 mm (P﹣P)
    *Accuracy: ±5%H±2digits
    *Measuring frequency：
    --Acceleration: 10Hz~1KHz (LO)；1KHz~15KHz (HI)
    --Velocity: 10Hz~1KHz (LO)
    --Displacement: 10Hz~1KHz (LO)
    *LCD display: 3 1/2 digits display
    *Vibration pickup: Piezoelectric ceramic accelerometer (Shear-type)
    *Data output: AC output 2 V peak (display full scale)
    *Load impedance: 10K or more earphones can be connected
    *Operation temperature: 0~40℃
    *Equipped two probes (S and L) to adapt the different measurement requirement
    *Low battery indication
    *Auto power off
    *LCD backlight display
    Warranty: 12months

    *Packing method: Gift box + PP box
    *Power supply: 1*9V battery
    *Weight: 134.5g
    *Dimension: 175*67*33MM
