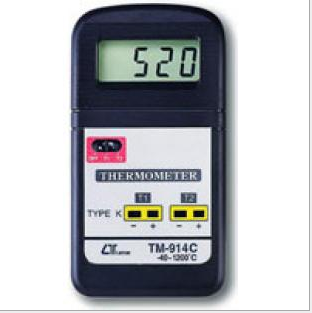

台湾路昌迷你双组温度计TM-914C

  • 点击：314次
  • 最后更新：2014-12-24 10:36
-
-
YPCCN
第2年
进入店铺 >
分享到 :
-
详细介绍 技术参数 本店推荐
     1.测量范围 : -40~1200°C ±3%

    2.精确度 : ±1%

    3.两组温度测量及显示(T1或T2)

    4.取样时间0.4秒

    5.感测棒型式:TYPE K 热电偶测棒

    6.Size：131 X 70 X 25mm

    般規格：

    Display 3 1/2 digits with annuciator, 15 mm ( 0.5&quo ) LCD
    Sensor Type Thermocouple K
    ( NiCr- NiAl), Optional
    Measurement Two channel input ( T1, T2 )
    Range Resolution TM-914C: -40℃ to 1200℃ &time 1℃
    TM-914F: -40℉ to 1382℉ &time 1℉
    Sampling Time Approx. 0.4 second
    Power Supply DC 9V battery, 006P, MN1604 or equivalent
    Power Current Approx. DC 1.8 mA
    Dimension 108 &time 73 &time 23 mm ( 4.3 &time 2.9 &time 1.4 inch )
    Weight 140 g/0.31 LB
    Accessory Operation Manual.................................. 1PC



    精 確 度 ( 23&plusm5℃ )
    TM-914C: &nbs
    0 to 750℃:&plusm(1% + 1℃ )
    750 to 1000℃: typ. - ( 2% + 1℃ )
    1000 to 1200℃: typ. - ( 4% + 3℃ )
    0 to -20℃: typ.&plusm2℃
    * typ. : Typically    		 32 to 1382℉:&plusm( 1% + 2℉ )
    1382 to 1832℉: typ. - ( 2% + 2℉ )
    1832 to 2000℉: typ. - ( 2% + 4℉ )
    32 to -4℉: typ.&plusm 4℉
    -4 to -40℉: typ. &plusm 6℉
    * typ. : Typically


    選購附件：


    Temperature
    Probe    		 Model: TP-01 -40℃ to 250℃ continuous (3000℃ short-term).
    Applications: Ultra fast response naked-bead therm ocouple wire, suitable for many general purpose application
    Model: TP-02A -50℃ to 900℃ (-50℉ to 1650℉ ). Dimension: 10 cm tube, 3.2 mm Dia.
    Penetration &am Immersion applications
    Model: TP-03 -50℃ to 1200℃ (-50℉ to 2200℉ ).
    Dimension: 10 cm tube, 8 mm Dia.
    Applications: High temperature, Penetration &am Immersion
    Model: TP-04A -50℃ to 400℃ (-50℉ to 752℉ ).
    Dimension: Temp. sensing head-15 mm Dia. Probe length-120 mm.
    Applications: Precision surface temp. measurement usage
    Carrying case Model: CA-04 Soft carrying case
    Holster Model: HS-02 High quality rubber protective holster
